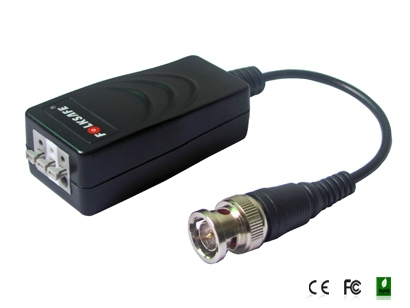

Folksafe FS-HDP4000 1 CH passzív HD-CVI/TVI/AHD video balun vevő földhurok lev.
Ár:
4.500 Ft
(3.543 Ft + ÁFA)
| Gyártó: |
|
| Gyártó cikkszám: | FS-HDP4000 |
| Elérhetőség: | Utolsó 2 db raktáron |

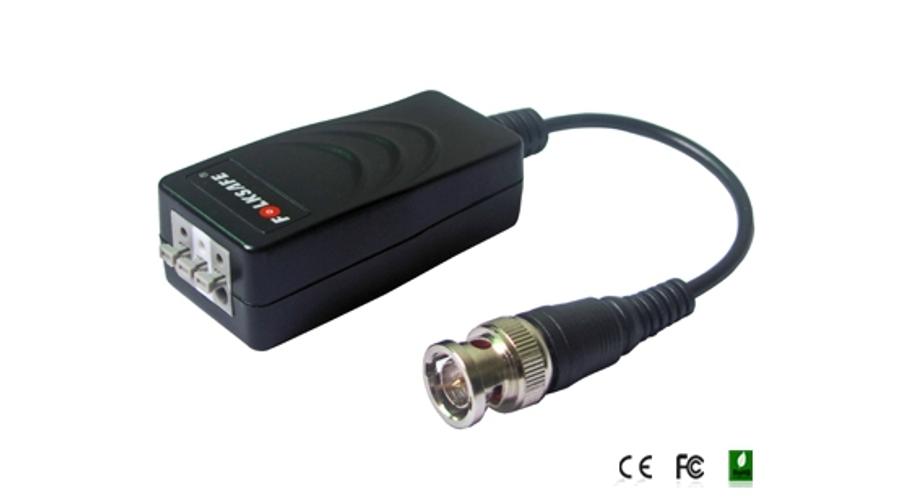

További képek
Leírás és Paraméterek
| Technikai Ismertető | |
| Model | FS-HDP4000 |
| Product Name | Single Channel Ground Loop Isolated Video Balun |
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
| Video properties | |
| Video Format | HD-TVI/CVI/AHD/CVBS |
| Operating Frequency | DC to 71MHz |
| Max Distance | UTP Category 5e (24AWG) Color:1312ft(400m) B&W:1968ft(600m) |
| Common-mode/Differential-mode rejection | 15 KHz to 5 MHz 60 dB typ |
| Impedance | Coax, Male BNC 75Ω unbalanced |
| UTP, 3 push-pins terminal block 100Ω balanced | |
| Attenuation | 1.5 dB typ Max |
| Wire Type | |
| Network Wiring | One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
| Category Type | UTP cat 5e/6 |
| Impedance | 100 ± 20 ohms |
| DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) |
| Differential Capacitance | 19 pF/ft max (62 pF/m max) |
| Power | No external power required |
| Connector | |
| Video input/output | Male BNC connector |
| Video input/output | Tool-less push-pin terminal block |
| Protection | |
| Surge Protection | renewable solid state surge protection |
| Video Input | 2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) |
| Video Output | 2KV(differential mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | Black |
| Dimensions(L*W*H) | 60*27*18mm(BNC connector & cable excluded) |
| Net Weight | 65g |
| Environmental | |
| Operating Temperature | -20 ~ 70 C |
| Relative Humidity | 0~95% (non-condensing) |
| Storage Temperature | -40 ~ 150 C |
