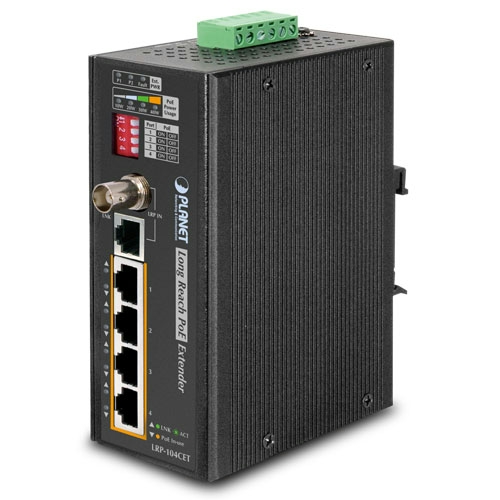

Planet LRP-104CET 4-Port 10/100TX PoE + 1-Port Coax
Ár:
270.806 Ft
(213.233 Ft + ÁFA)
| Gyártó: |
|
| Gyártó cikkszám: | LRP-104CET |
| Elérhetőség: | Rendelhető |
Csatolt dokumentumok
Leírás és Paraméterek
| BNC portok száma | 1 port LRP |
| PoE portok száma | 4 port PoE |
| Ethernet portok száma | 1 port |
| PoE szabvány | 802.3at High power PoE+ - 30W |
| Össz. PoE teljesítmény | 100 W |
| Switch port sebesség | 10/100 Mbps PoE - 10/100Mbps Ethernet |
| Méret | DIN sínre szerelhető |
| Tápellátás | Külső tápegység, nem tartozék! |
| HARDVER TULAJDONSÁGOK | |
| Ethernet Interfész | ■ Copper Ports |
| • Four 10/100BASE-TX RJ45 auto-MDI/MDI-X | |
| ■ PoE Injector Ports | |
| • Four ports with 802.3at/af PoE injector function with Port-1 to Port-4 | |
| ■ Functionality | |
| • Four DIP switches to control PoE output on or off with Port-1 to Port-4 | |
| ■ PoE Standards Compliance | |
| • IEEE 802.3at Power over Ethernet Plus/PSE | |
| ■ PoE Type | |
| • End-span | |
| ■ PoE Power output | |
| • 52V DC, PoE output depends on LRP Injector or LRP Switch | |
| • 52V DC, 25 watts per port (external DC input) | |
| ■ Cabling | |
| • Ethernet:10BASE-T:2-pair UTP Cat.3, 4 and 5 | |
| • Ethernet:100BASE-TX:2-pair UTP Cat.5, 5e and 6 | |
| ■ Maximum Distance | |
| • 100m | |
| ■ Maximum Frame size | |
| • 1522 bytes | |
| Long Reach PoE Interfész | ■ Connectivity |
| • One BNC female Long Reach PoE over Coaxial PD | |
| • One RJ45 connector Long Reach PoE over UTP PD | |
| ■ Power Input | |
| • 44~ 56V DC | |
| ■ Power Pin Assignment | |
| • BNC center pole:DC+ | |
| • BNC shield:DC- | |
| • RJ45 Pins 1, 3, 5, 7:VCC+ | |
| • RJ45 Pins 2, 4, 6, 8:VCC- | |
| ■ Cabling | |
| • Coaxial cable:75 ohm | |
| • RG-6/U cable, less than12Ω/1000 ft. | |
| • RG-59/U cable, less than 30Ω/1000 ft. | |
| • Cat. 3, 4, 5, 5e UTP cable (100 meters, max.) | |
| • EIA/TIA-568 100-ohm STP (100 meters, max.) | |
| ■ Maximum Distance | |
| • Coaxial | |
| - Max. 200m with PoE+ output (656ft.) | |
| - Max. 1000m with PoE output (3,280ft.) | |
| • UTP | |
| - Max. 500m with PoE+ output (1,640ft.) | |
| ■ Long Reach Ethernet Stan dard | |
| • IEEE 1901 | |
| ■ Modulation Type | |
| • Wavelet-OFDM | |
| ■ Security | |
| • 128-bit AES encryption | |
| ■ Frequency Band | |
| • 2 ~ 28 MHz | |
| ■ Encryption | |
| • AES 128-bit | |
| ■ LRP Compatibility | |
| • With power over coaxial input | |
| - LRP-101CH – 1-Port LRP Injector | |
| - LRP-822CS – 8-Port LRP over Coax Switch | |
| - LRP-1622CS – 16-Port LRP over Coax Switch | |
| • With power over UTP input | |
| - LRP-101UH – 1-Port LRP Injector | |
| LED Jelzőfények | 3 x LED for External Power Supply: |
| DC Power 1 (Green) | |
| DC Power 2 (Green) | |
| Power Fault ( Red ) | |
| 4 x LED for PoE Usage: | |
| 10W/20W/30W/40W (Green) | |
| 2 x LED for Long Reach PoE In: | |
| PWR (Green) | |
| LNK (Green) | |
| 2 x LED for each RJ45 interface (Port-1 and Port-4)： | |
| 10/100Mbps LNK/ACT (Green) | |
| PoE-in-use (Orange) | |
| Telepítés | DIN rail kit and wall-mount kit |
| Méretek (Szé x Mé x M) | 135 x 87.8 x 56 mm |
| Tömeg | 644g |
| Tápellátás | 44~56V DC power over coaxial input |
| DC 24~48V, redundant power with polarity reverses protection function | |
| Teljesítményfelvétel | 130 watts/446BTU (Ethernet with PoE Full Loading) |
| Riasztási Kimenet | One relay output for power failure. Alarm relay current carry ability:1A @ 24V DC |
| Burkolat | Aluminum case |
| MEGFELELŐSÉGI SZABVÁNYOK | |
| Hálózati Szabványok | IEEE 802.3 Ethernet/10BASE-T |
| IEEE 802.3u Fast Ethernet/100BASE-TX | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3at Power over Ethernet Plus | |
| Szabályozási Megfelelőség | FCC Part 15 Class A, CE |
| Stabilitási Tesztek | IEC60068-2-32 (free fall) |
| IEC60068-2-27 (anti-shock) | |
| IEC60068-2-6 (anti-vibration) | |
| KÖRNYEZETI TULAJDONSÁGOK | |
| Hőmérséklet | Operating:-20~70 degrees C |
| Storage:-25~75 degrees C | |
| Páratartalom | Operating:5~95% (non-condensing) |
| Storage:5~95% (non-condensing) | |
| TELJESÍTMÉNY MUTATÓK | |
| Koaxiális | Distance |
| 200m | |
| 400m | |
| 600m | |
| 800m | |
| 1000m | |
| UTP | Distance |
| 100m | |
| 200m | |
| 300m | |
| 400m | |
| 500m | |
| *As there are various resistance values in the category of RG-59/U or RG-6/U cable, | |
| the actual data rate will vary on the quality of the copper wire and environmental factors. | |
| **Depending on what the DC/PoE power input and the length of coaxial cable are. |
