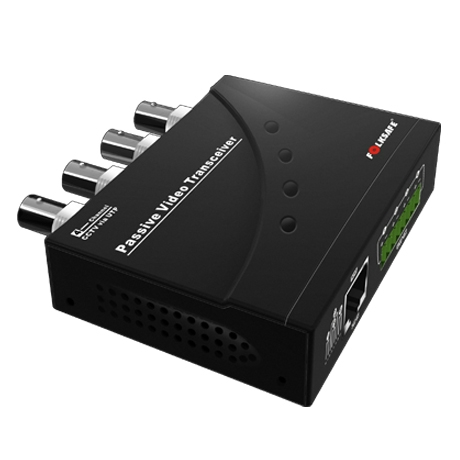

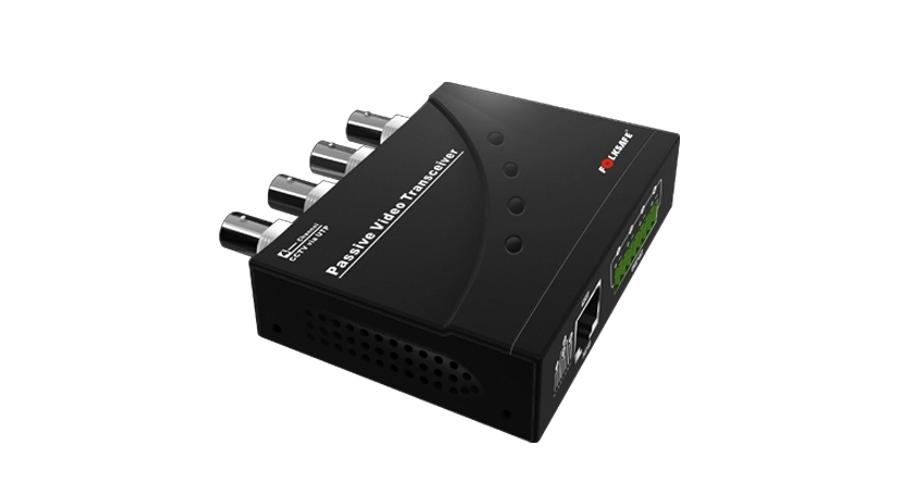

Folksafe FS-HDP4504SR-II 4 CH passzív HD-CVI/TVI/AHD video balun RJ45 és sorkap.
Ár:
9.661 Ft
(7.607 Ft + ÁFA)
| Gyártó: |
|
| Gyártó cikkszám: | FS-HDP4504SR-II |
| Elérhetőség: | Utolsó 1 db raktáron |
Leírás és Paraméterek
| Technikai Ismertető | |
| Model | FS-HDP4504 |
| Product Name | 4 Channel HD Passive Video Balun |
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
| Video properties | Video Format:HD-TVI/ CVI/AHD /CVBS |
| Operating Frequency:DC to 71MHz | |
| Common-mode/Differential-mode rejection:15KHz to 71MHz 60 dB typ | |
| Impedance:Coax:female BNC 75Ω unbalanced | |
| UTP:screw terminal block or RJ45 Jack 100Ω balanced | |
| Attenuation:1.5 dB typ Max | |
| Wire Type | Network Wiring:One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
| Category Type:UTP cat 5e/6 | |
| Impedance:100Ω ± 20 ohms | |
| DC Loop Resistance:52 ohms per 1,000ft (18 ohms per 100m) | |
| Differential Capacitance:19 pF/ft max (62 pF/m max) | |
| Power | No external power required |
| Connector | Video input/output:Female BNC connector |
| Video input/output:Pluggable screw terminal block and RJ45 for UTP ( select one:connection) | |
| Protection | Surge Protection:renewable solid state surge protection |
| Video Input:2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) | |
| Video Output:2KV(differential mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) | |
| Antistatic | YES |
| Mechanical | Dimensions(L*W*H):180*85*32mm |
| BNC connector & mounting bracket excluded | |
| Housing:Galvanized | |
| Body Color:Black | |
| Net Weight:480g | |
| Environmental | Operating Temperature:-20°C ~ 70°C |
| Relative Humidity:0~95% (non-condensing) | |
| Storage Temperature:-40°C ~ 150°C |
