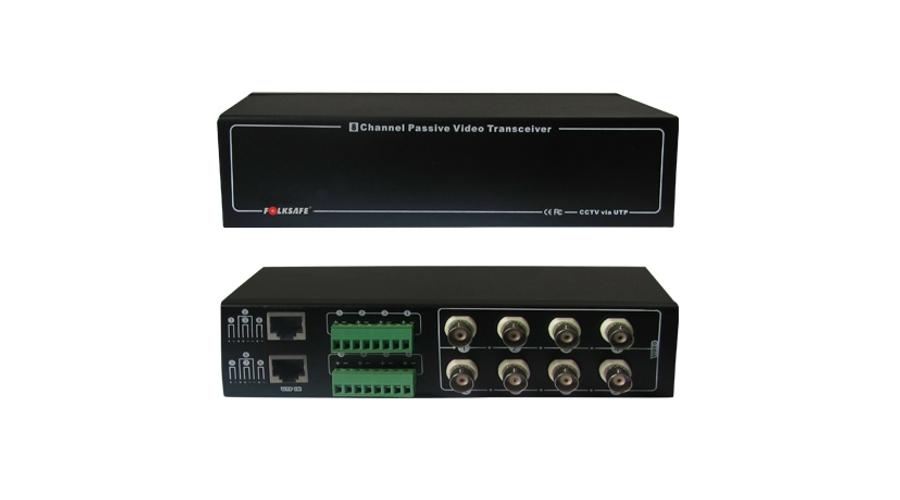

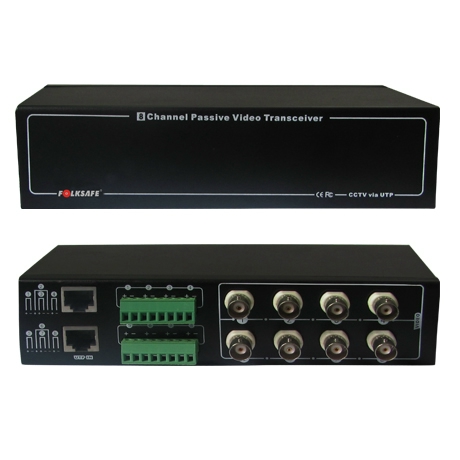

Folksafe FS-HDP4608SR 8 CH passzív HD-CVI/TVI/AHD video balun RJ45 és sorkapocs
Ár:
14.500 Ft
(11.417 Ft + ÁFA)
| Gyártó: |
|
| Gyártó cikkszám: | FS-HDP4608SR |
| Elérhetőség: | Utolsó 3 db raktáron |
Csatolt dokumentumok
Leírás és Paraméterek
| Technikai Ismertető | |
| Model | FS-HDP4608 |
| Product Name | 8 Channel HD Passive Video Balun |
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
| Video properties | |
| Video Format | HD-TVI/ CVI/AHD /CVBS |
| Operating Frequency | DC to 71MHz |
| Common-mode/Differential-mode rejection | 15KHz to 71MHz 60 dB typ |
| Impedance | Coax:female BNC 75Ω unbalanced |
| UTP:screw terminal block or RJ45 Jack 100Ω balanced | |
| Attenuation | 1.5 dB typ Max |
| Wire Type | |
| Network Wiring | One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
| Category Type | UTP cat 5e/6 |
| Impedance | 100 ± 20 ohms |
| DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) |
| Differential Capacitance | 19 pF/ft max (62 pF/m max) |
| Power | No external power required |
| Connector | |
| Video Input/Output | Female BNC connector |
| Video Input/Output | Pluggable screw terminal block and RJ45 for UTP ( select one connection) |
| Protection | |
| Surge Protection | Renewable solid state surge protection |
| Video Input | 2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) |
| Video Output | 2KV(differential mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) |
| Antistatic | YES |
| Mechanical | |
| Dimensions(L*W*H) | BNC connector & mounting bracket excluded |
| 180*85*44.5mm | |
| Housing | Galvanized |
| Body Color | Black |
| Net Weight | 580g |
| Environmental | |
| Operating Temperature | -20Âş ~ 70Âş C |
| Relative Humidity | 0~95% (non-condensing) |
| Storage Temperature | -40Âş ~ 150Âş C |
